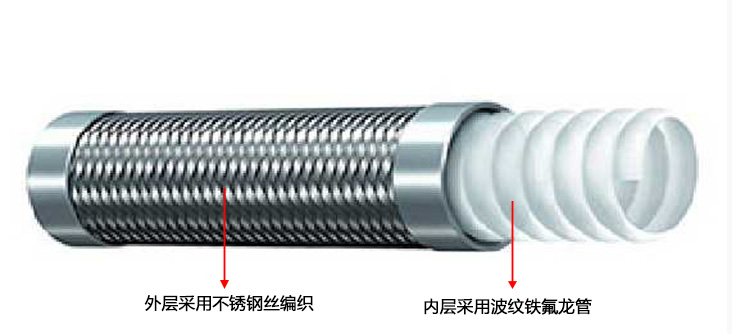

产品结构:
内层:PTFE波纹状,中间配有SS304不锈钢编织网,
外层:SS304不锈钢编织网
产品描述:
——工作温度范围‘-60ºC / +220ºC 在短时间内可达到 260ºC
——具有耐强酸和强碱性能,有好的化学稳定性。可以耐高压,内壁有具有很好耐磨性。
——具有弯曲性,内壁光滑清洁,易清洗不粘水,用清洗物清洗后不附着任何残留物,可采用高温高压蒸汽消毒和灭菌。
——无嗅、无味,完全无毒,不含任何塑化剂和添加剂成分。完全符合食品FDA和生物医用级USP VI的要求。
——这些管通常是外层为乳白色或透明硅胶。我们也可根据客户所需颜色来订制外层。
配套接头:
TC接头(直通快速接头316L),SMS接头,DIN快接,CLAMP,CLOCK,J螺纹接头,等材质为304或316L任客户挑选。
品质认证:
——硅胶软管通过美国FDA 21 CFR 177.2600(食品和药物管理局)食品级认证。
Product structure:
Inner layer: PTFE corrugated
Middle layer: SS304 stainless steel wire braided mesh
Outer Dia: white or transparent silicone
Product characteristics:
-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.
-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.
-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking,
After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.
-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.
-the outer layer of the hose is milky white silicone or transparent silicone. The color can be customized according to customer's needs
Supporting connectors:
TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.
Quality certification:
-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
